2 Channels Coax Rotary Joint

2 Channels Coax Rotary Joint
2 Channels Coax Rotary Joint
Send Inquiry
Product Code : LPHF-02B
Brand Name : JINPAT
Product Description

LPHF-02B

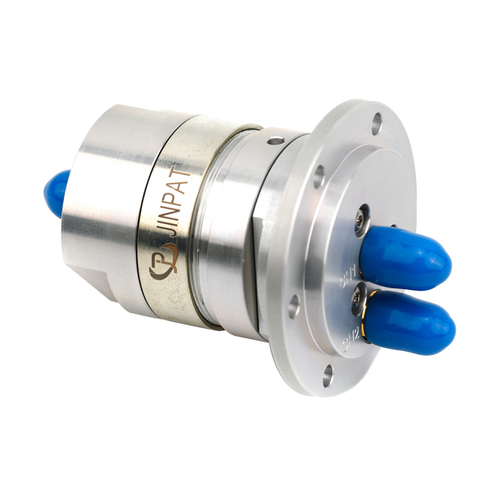

         Thepart is a two-channel coax rotary joint, which possesses an excellent RFperformance. With a coaxial cable SMA connector, its frequency of RF signal is upto 18 GHz. Meanwhile, compact design gives it a small and light figure.


Specification

Channel: 2 channels

Characteristic Impedance: 50 Ω

Frequency Range:DC-18 GHz; DC-4 GHz

Peak Power, max: 3000 W; 3000 W

Stationary Wave Ratio: 1.2 @0~4 GHz, 1.5 @4~18 GHz; 1.4 @0~2 GHz,2.5 @2~4 GHz

SWR Variation: 0.04; 0.36

Insertion Loss: <0.08 dB@4 GHz, <0.48 db@18 GHz; <0.48 dB@2 GHz, <0.98 dB@4 GHz

Insertion Loss Variation: 0.05 dB; 0.25 dB

Phase Shift, max: 1°; 2°

Isolation: ≥60 dB

Operating Speed: 60 rpm

Working Temperature: -40~+70 ℃

Life: 10 million turns

IP 60
