3 Circuits Capsule Slip Ring

3 Circuits Capsule Slip Ring
3 Circuits Capsule Slip Ring
Send Inquiry
Product Code : LPC-03P
Brand Name : JINPAT
Product Description

Description

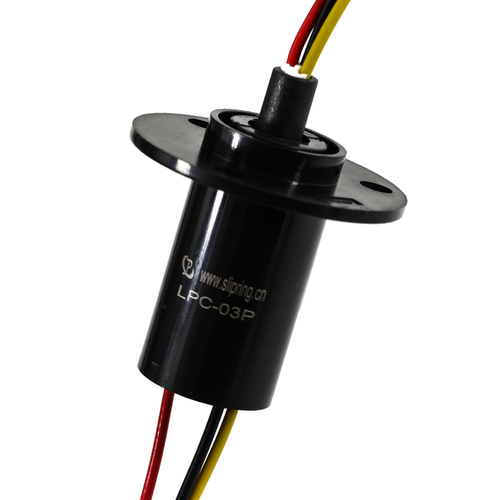

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPC-03P slip ring provides 3 circuits at 5 amps and 6 circuits for signal (2 amps per circuit). The LPC-03P provides 3 circuits at 10 amps. This compact power and signal handling design provides a unique capability for many challenging applications. The LPC-03P serials provide smoother running, higher design precision, lower torque, lower contact resistance, and lower electrical noise than competitive slip rings.

 Features

â—† 3 circuits or more models

â—† 5 amps /2 amps and 10 amps /2 amps circuits combinations

â—† Speed up to 300 rpm continuous

â—† Gold-gold contacts

â—† Color-coded, silver-plated insulated lead wires

â—† Longer lead wire available

â—† Compatible with data bus protocols

â—† Transfers analog and digital signals

â—† Sealed units are available



Specifications

Operating Speed

0-300rpm

Number of Circuits

3@10 A

Voltage

240VAC/DC

Current Rating

10ampa per circuit

Temperature Range

-20℃ ~ +60℃

Contact Material

Gold to Gold

Lead Size

10 amps,AWG17

Lead Length

Standard 250 mm (9.843inch)

Dielectric Strength

≥500 VAC @50Hz, between each circuit

Insulation Resistance

100 MΩ@ 500 VDC

Electrical Noise

1mΩMin
