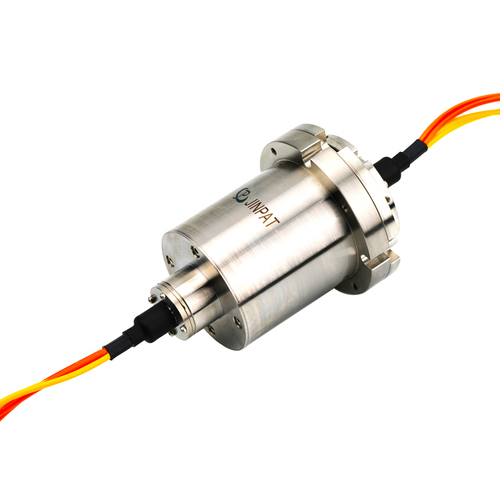

3 to 7 Channels Fiber Optic Rotary Joint

3 to 7 Channels Fiber Optic Rotary Joint
3 to 7 Channels Fiber Optic Rotary Joint
Send Inquiry
Product Code : LPFO-07B
Brand Name : JINPAT
Product Description

Description:

Fiber Optic Rotary Joint (LPFO) is to transmit high-speed data between rotating and stationary parts in a system by using optical fiber as media. It can improve the mechanical properties and simplify the system structure to avoid problems resulted from rotation activities. It is also able to integrate with other rotary joints to transfer gas or liquid.


â–¶ Be able to integrate with rotary joints routing gas/ liquid

â–¶ No contact, no friction

â–¶ Long distance transmission without leakage or electromagnetic interference

â–¶ Small and light figure

â–¶ Working in the harsh environment

â–¶ IP65/68 high protection level

â–¶ Long service life


Specification

Channel: 3~7

Fiber Type: SM/MM

Wavelength:850~1550nm

Insertion Loss: <5dB

Return Loss: >45dB

Crosstalk: >50dB

Working Speed:100 rpm

Tension:10N

Working Temperature:-20~+65℃

Connector Type: ST/FC/SC/LC

Protection Grade:IP68/IP65

Trade Information
  • Payment Terms
  • Others, Paypal, Telegraphic Transfer (T/T)
  • Supply Ability
  • 500 Per Week
  • Main Domestic Market
  • All India
  • Certifications
  • ISO9001:2008/ ISO14001:2015 / UL / CE/ FCC/ RoHs
