Pancake Slip Rings

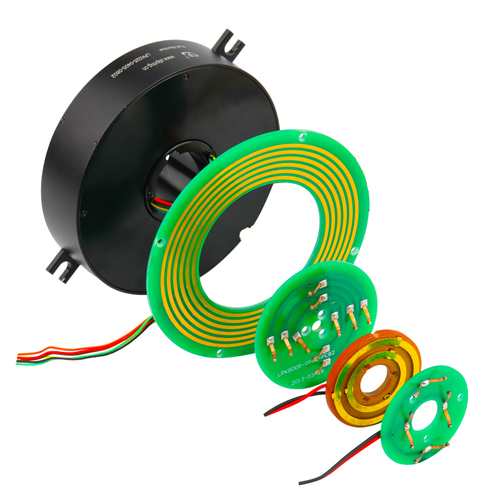

LPKseries is a group of Pancake Slip Rings manufactured by JINPAT with thethickness as thin as 6mm. They are designed exclusively for rotation systems inwhich installing space is limited in height at vertical direction. Both copperring and brush contact surround a central hole, which saves space a lot. LPKseries slip ring is divided into 2 kinds: separate pancake slip ring LPKS andLPK stand-alone pancake slip ring.

Features

• HighRotating Speed
• Unfailingcontact, light figure
• Extremelylow physical noise
• Transmittingpower and signal in 360° rotation
•  Nointerference or connection drop

Advantages

• Ready-madephotoelectric encoder
• Optionalsolid and hollow shafts
• Rapiddelivery
•  Customsolution

Technical Ability

Circuits: 1~17circuits

Electric & Electronic

Current Rating:30A per circuit

Voltage Rating: 380VAC

Mechanical

• Operating Speed: 0-300rpm
• Inner Diameter: 4mm-820mm
• Outer Diameter: 21mm-1220mm
• Thickness mm-63mm
• Torque: 0.05N.m
• Shock Resistance: 30g

Environment

Temperature: -60+150

Humidity: 100%RH

IP: IP66

Life: 5 million turns
